Görgős láncok

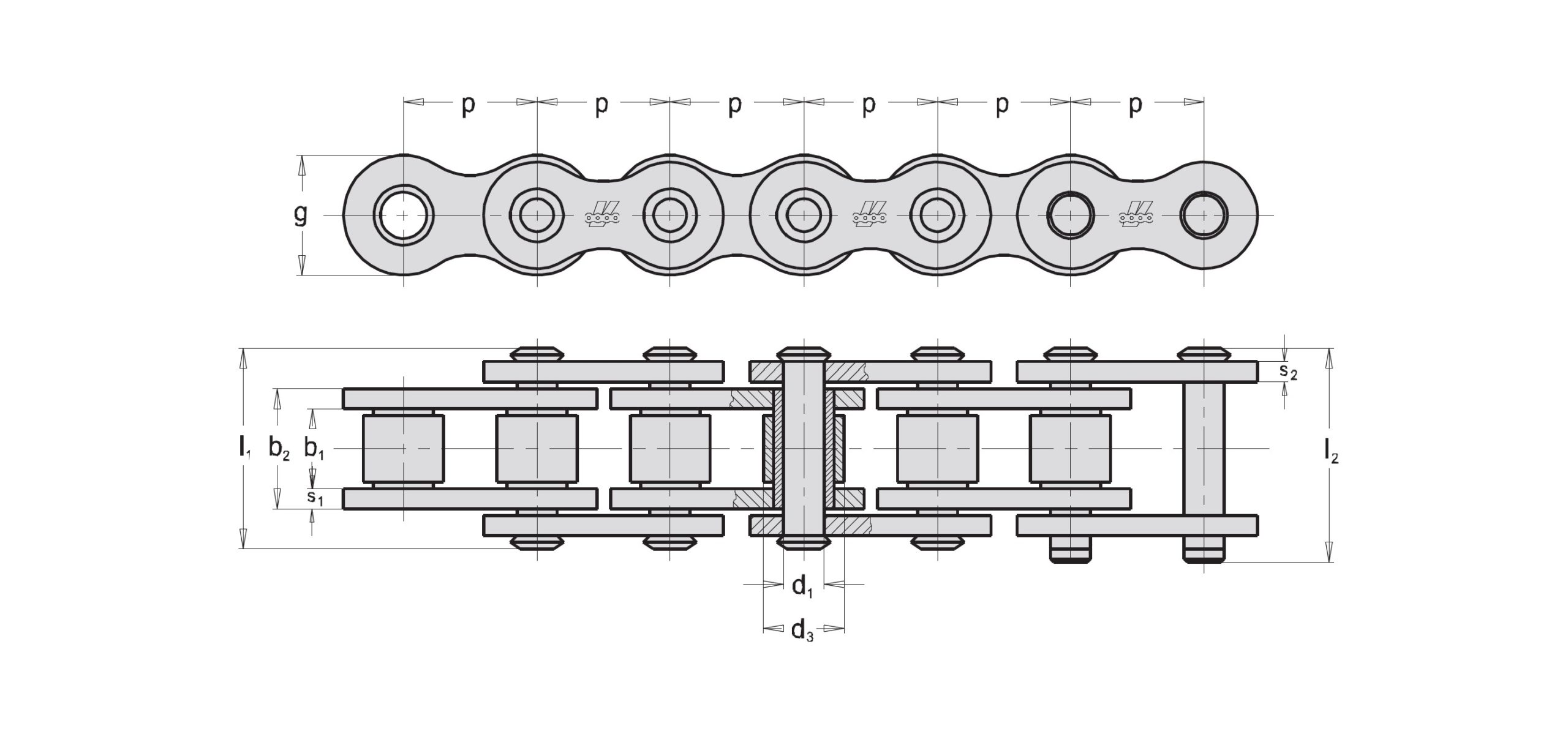

Rozsdamentes láncok (DIN 8187)

ISO St.p
mm		b1
mm - min.		b2
mm - max.		d1
mm h9		d3
mm h10		l1
mm		l2
mm		g
mm		s1
mm		s2
mm		f
mm2		FB
kN min		FA
kN		Q
kg/m
06B-1SS9,5255,728,533,286,3513,516,88,21,301,30286,20,880,41
08B-1SS12,7007,7511,304,458,5117,020,911,81,601,605012,01,710,69
10B-1SS15,8759,6513,285,0810,1619,623,714,71,601,606714,52,070,93
12B-1SS19,05011,6815,625,7212,0722,727,314,71,801,808918,52,641,15
16B-1SS25,40017,0225,458,2815,8836,141,521,04,003,0021040,05,712,71
20B-1SS31,75019,5629,0010,1919,0541,246,026,04,503,5029659,08,433,70
24B-1SS38,10025,4037,9014,6325,4053,458,533,46,005,00554104,014,857,10
28B-1SS44,45030,9946,5015,9027,9465,069,636,67,006,00739120,017,149,10
32B-1SS50,80030,9945,5017,8129,2165,273,141,87,006,00810150,021,439,70
40B-1SS63,50038,1055,7022,8939,3780,486,352,08,008,001275202,028,8516,80
48B-1SS76,20045,7270,5029,2448,2699,1107,963,412,0010,002061343,049,0025,90
